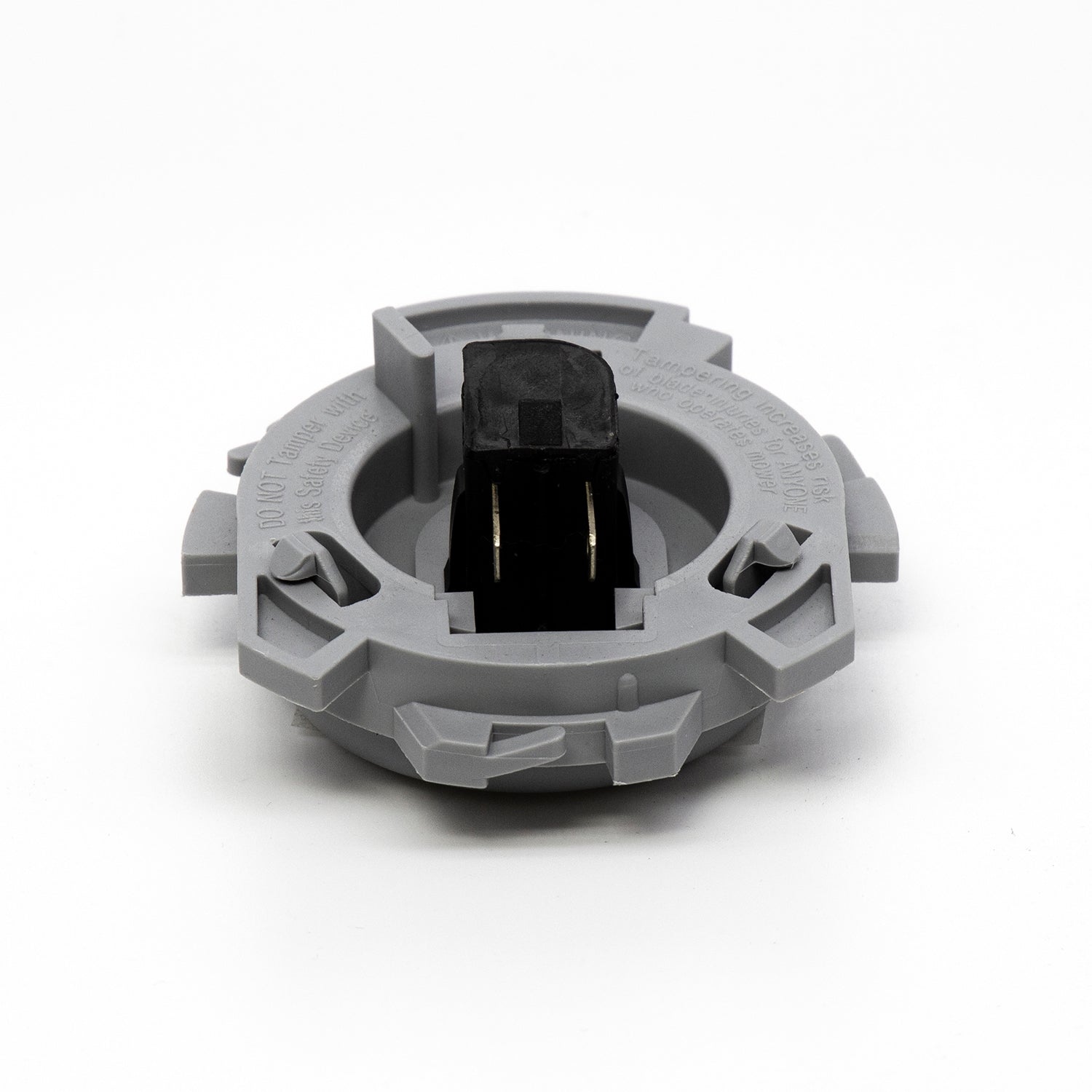

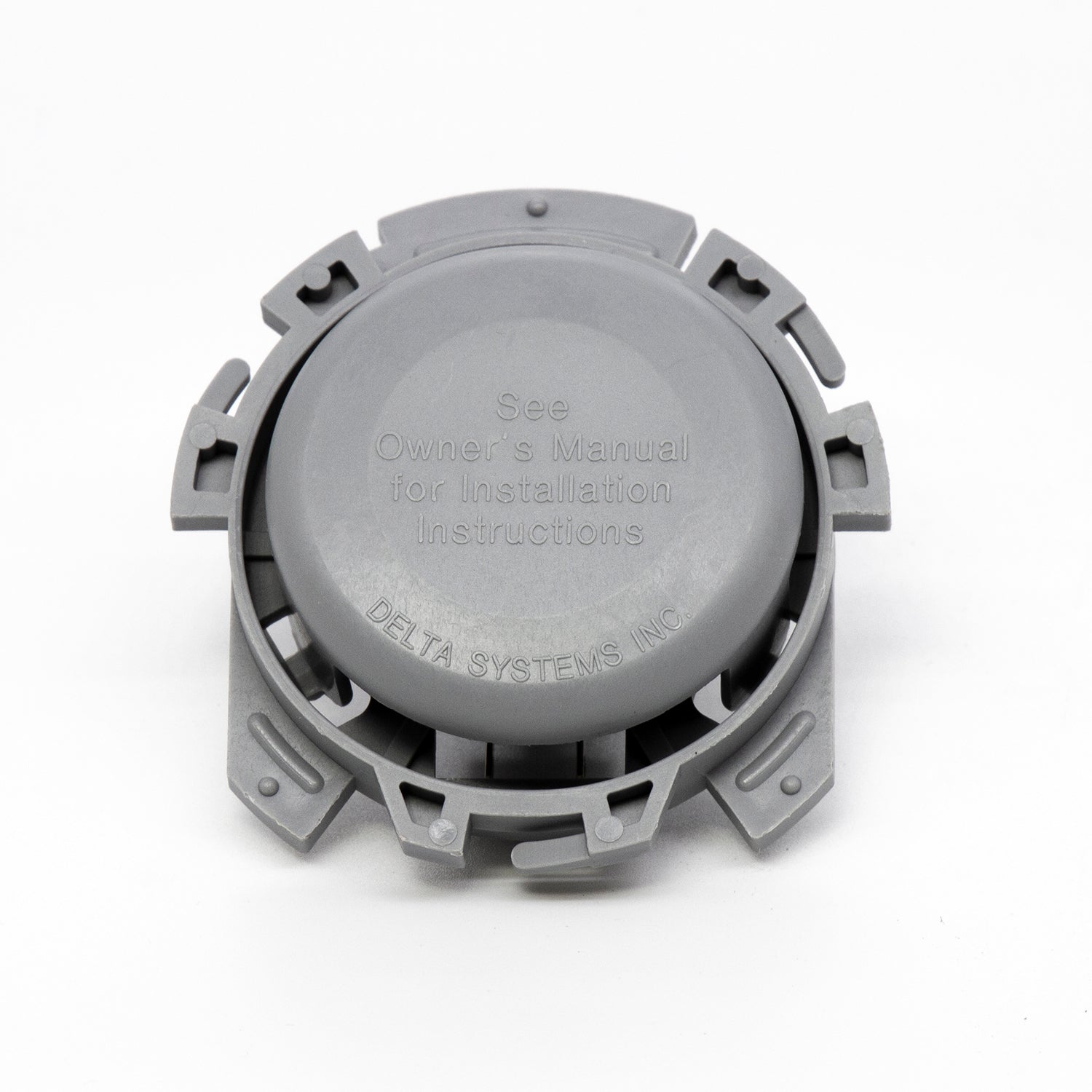

Wise Industrial WM1582 Delta Systems Twist Mount Safety Switch
Delta Systems Twist Mount Safety Switch is used to sense operator presence. This safety switch provides a fail-safe condition (shutting down the engine, turning off cutting blades, etc.) when an equipment operator is no longer in the driver’s seat. The switch is actuated only when the operator is seated, compressing the switch, thus helping to ensure a safe experience.
SPECIFICATIONS
| Maximum Voltage, VDC |
18 |
| Maximum Current @ 12-14 VDC, A |
3 |
| Pre-travel, inches |
0.040 - 0.150 |
| Contact Resistance @ Max Current, mΩ |
83.3 |
| Cycle Life @ Max Load: Inductive |
10,000 |
| Cycle Life @ Max Load: Resistive |
75,000 |
| Operating/Storage Temperature, °F |
-20 to +100 |
LINE DRAWING
