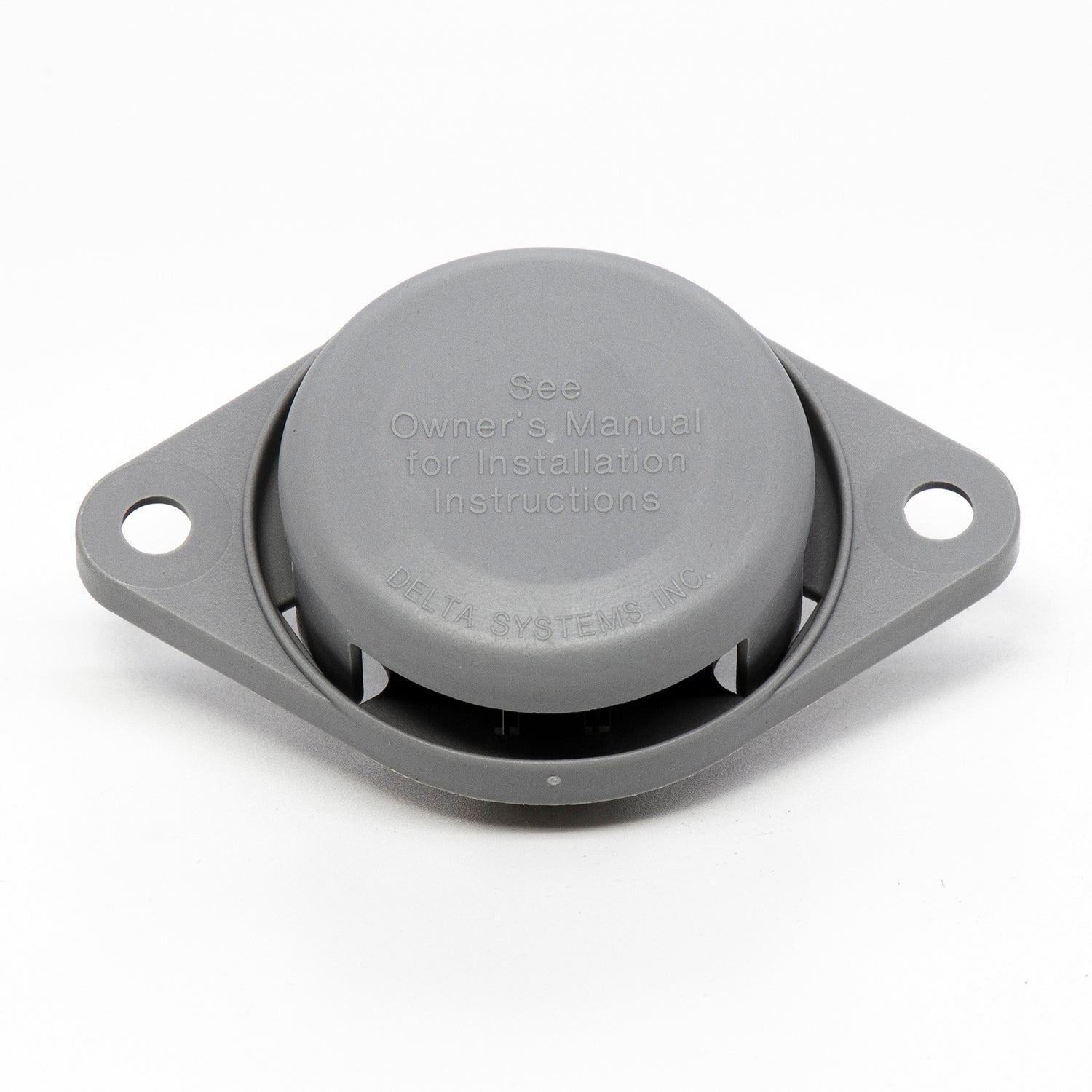

Wise Industrial WM1020 Delta Systems Bolt Mount Safety Switch - Top View

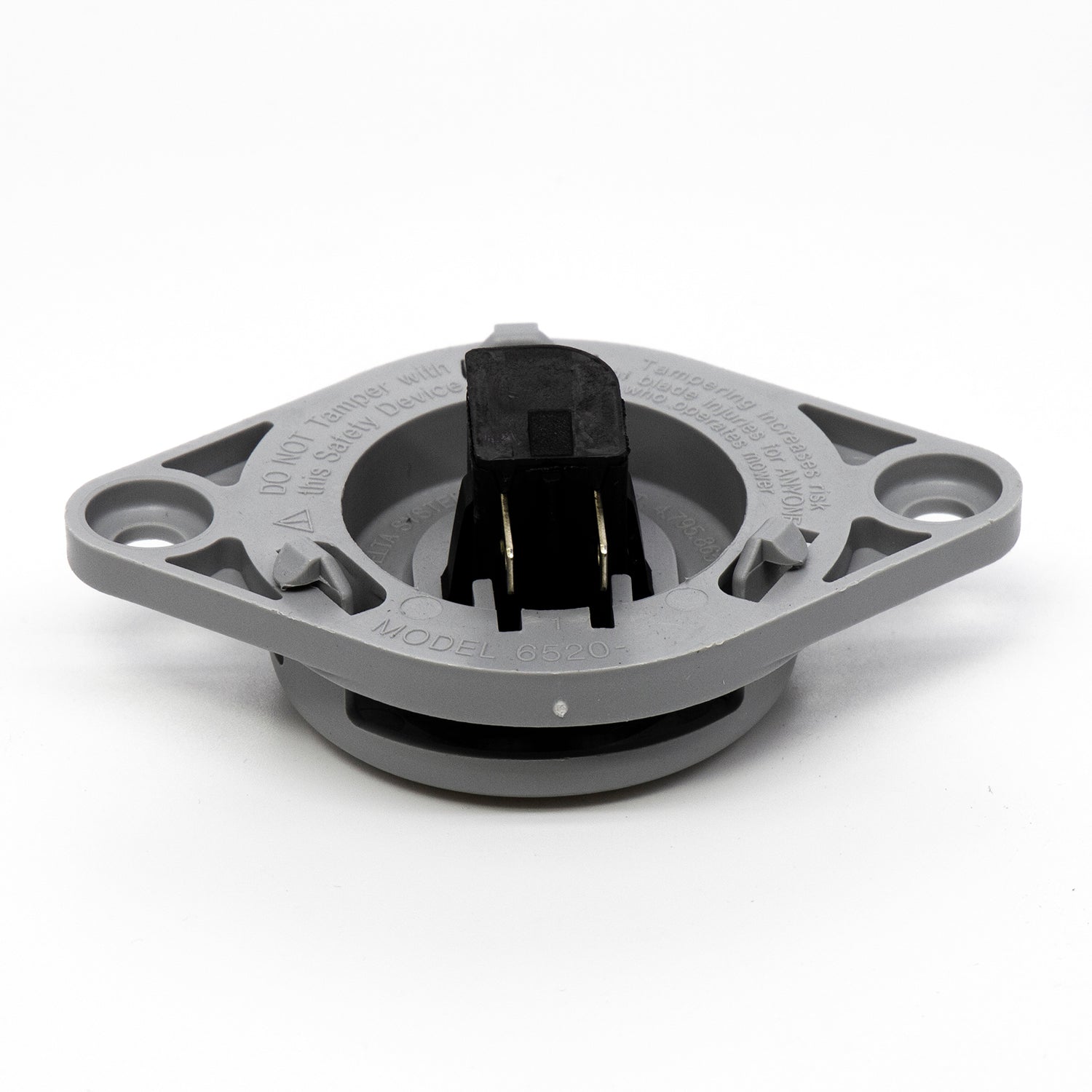

Wise Industrial WM1020 Delta Systems Bolt Mount Safety Switch -Bottom View

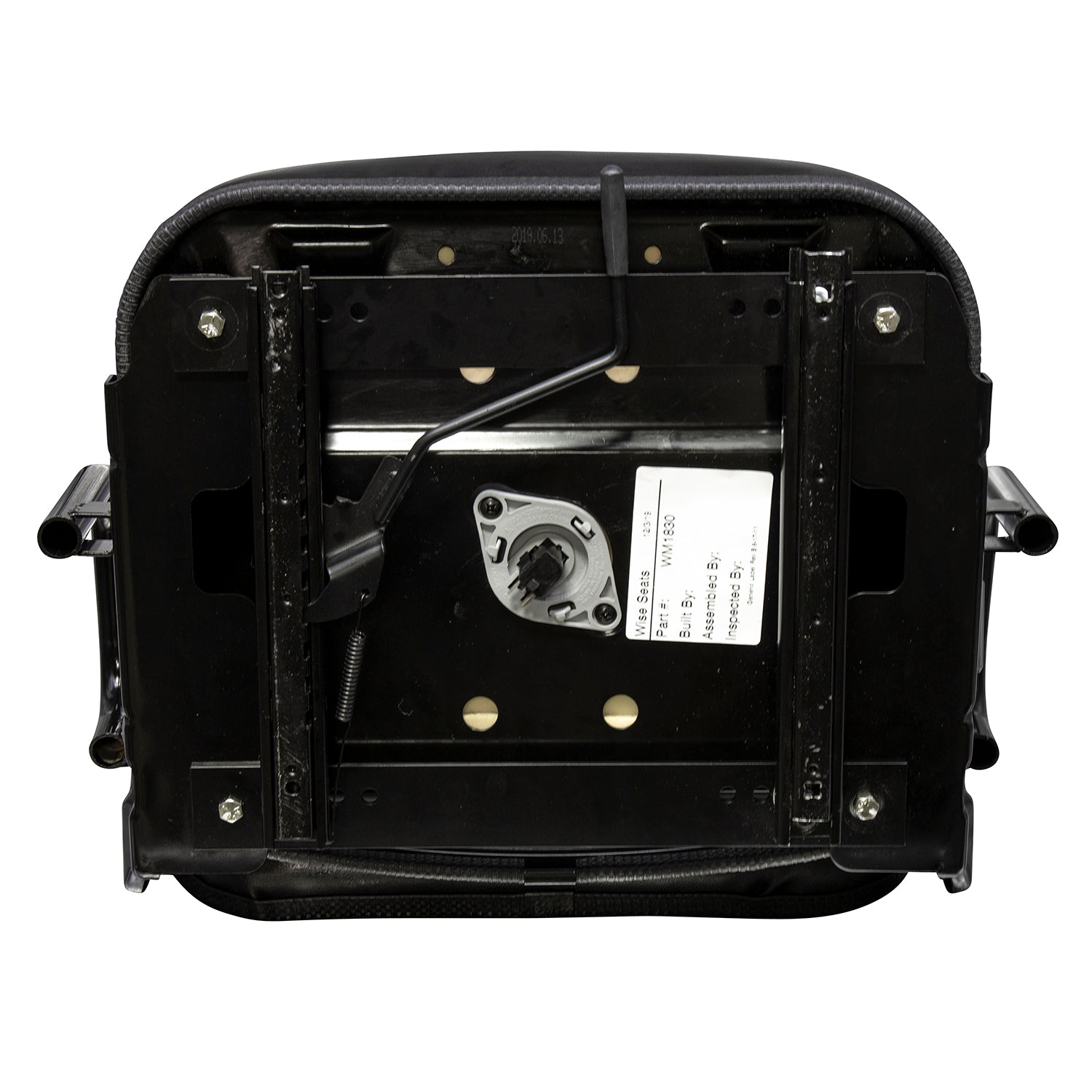

Wise Industrial WM1020 Delta Systems Bolt Mount Safety Switch - Mounted View

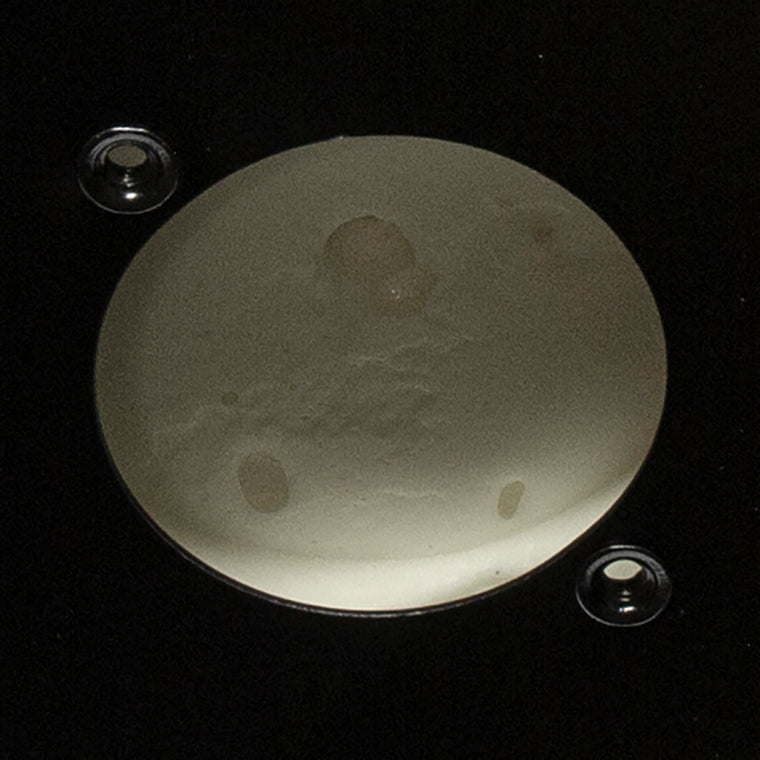

Wise Industrial WM1020 Delta Systems Bolt Mount Safety Switch - Mount Pattern

Wise Industrial WM1020 Delta Systems Bolt Mount Safety Switch

Delta Systems Bolt Mount Safety Switch is used to sense operator presence. This safety switch provides a fail-safe condition (shutting down the engine, turning off cutting blades, etc.) when an equipment operator is no longer in the driver’s seat. The switch is actuated only when the operator is seated, compressing the switch, thus helping to ensure a safe experience.

SPECIFICATIONS
Maximum Voltage, VDC
18
Maximum Current @ 12-14 VDC, A
3
Pre-travel, inches
0.040 - 0.150
Contact Resistance @ Max Current, mΩ
83.3
Cycle Life @ Max Load: Inductive
10,000
Cycle Life @ Max Load: Resistive
75,000
Operating/Storage Temperature, °F
-20 to +100
LINE DRAWING
Wise WM1020 Delta Systems Bolt Mount Safety Switch - OEM Model # 6520
